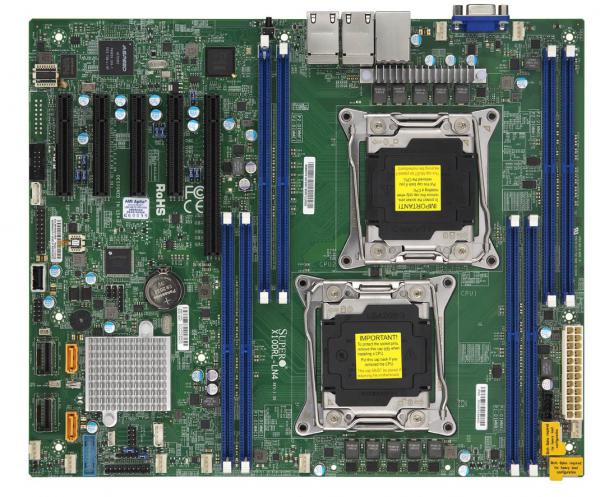

X10DRL-LN4

ATX

12" x 10" (30.48cm x 25.4cm)

Intel® Xeon® processor E5-2600 v3, Intel® Xeon® processor E5-2600 v4.

Dual Socket R3 (LGA 2011) supported, CPU TDP support Up to 145W, 1 QPI up to 9.6GT/s

Up to 22 cores † / Up to 55MB† cache

† BIOS version 2.0 or above is required

** Motherboard supports this maximum TDP. Please verify your system can thermally support.

Up to 1TB Registered ECC RDIMM, DDR4-2400MHz; Up to 1TB Registered ECC LRDIMM, in 8 DIMM slots

2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit

RDIMM: 4GB, 8GB, 16GB, 32GB

LRDIMM: 32GB, 64GB

3DS LRDIMM: 128GB

1.2V

Corrects single-bit errors

Intel® C612

Intel® C612 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10

SATA3 (6Gbps); RAID 0, 1, 5, 10

SATA3 (6Gbps); RAID 0, 1, 5, 10

Support for Intelligent Platform Management Interface v.2.0

IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

ASPEED AST2400 BMC

Quad LAN with Intel® i350 Gigabit Ethernet Controller
Single LAN with Supports 10Base-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Single LAN with 1 Realtek RTL8211E PHY (dedicated IPMI)

Aspeed AST2400 BMC

10 SATA3 (6Gbps) port

4 RJ45 Gigabit Ethernet LAN ports

1 RJ45 Dedicated IPMI LAN port

5 USB 2.0 ports (2 rear + 2 headers + 1 Type A)

2 USB 3.0 ports (2 headers)

1 VGA port

1 COM Port (1 header)

TPM Header

2 SATA DOM power connectors

2 PCI-E 3.0 x8,

1 PCI-E 3.0 x16,

1 PCI-E 3.0 x4 (in x8 slot)

1 PCI-E 2.0 x4 (in x8 slot)

128Mb SPI Flash EEPROM with AMI BIOS

Plug and Play (PnP)

PCI 2.3

ACPI 3.0 / 4.0

USB Keyboard support

SMBIOS 2.7.1

UEFI 2.3.1

IPMI2.0, KVM with dedicated LAN, SPM, SUM, SuperDoctor® 5, Watchdog

ACPI Power Management

Power-on mode for AC power recovery
