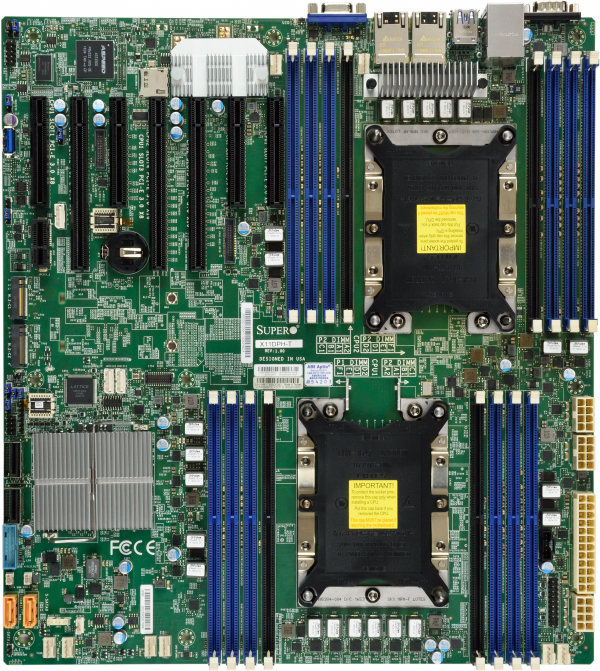

超微X11DPH-T 双路服务器主板 E-ATX/C622/205W


Product SKUs

MBD-X11DPH-T
  • X11DPH-T


Physical Stats

Form Factor
  • E-ATX

Dimensions
  • 12" x 13" (30.48cm x 33.02cm)


Processor/Cache

CPU
  • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors,

  • Dual Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 205W TDP, 3 UPI up to 10.4 GT/s

Note
  • BIOS version 3.0a or above is required to support 2nd Generation Intel Xeon Scalable Processors-SP

  • BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)


System Memory

Memory Capacity
  • Up to 4TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-2933MHz, in 16 DIMM slots;

  • Up to 2TB Intel® Optane™ DC Persistent Memory in memory mode (Cascade Lake only);


Memory Type
  • 2933/2666/2400/2133MHz ECC DDR4 RDIMM, LRDIMM

DIMM Sizes
  • RDIMM: 64GB

  • LRDIMM: 64GB

  • 3DS LRDIMM: 128GB, 256GB

Memory Voltage
  • 1.2V

Error Detection
  • Corrects single-bit errors

  • Detects double-bit errors (using ECC memory)


On-Board Devices

Chipset
  • Intel® C622

SATA
  • Intel® C622 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10

IPMI
  • ASPEED AST2500

Network Controllers
  • Dual LAN with 10GBase-T with Intel® X722 + X557


Input / Output

SATA
  • 10 SATA3 (6Gbps) ports

LAN
  • 2 RJ45 10GBase-T ports

USB
  • 7 USB 3.0 ports (4 rear + 2 headers + 1 Type A)

Video Output
  • 1 VGA port

Serial Port / Header
  • 1 COM Port (1 rear)

TPM
  • 1 TPM Header

Expansion Slots

PCI-E
  • 3 PCI-E 3.0 x16,

  • 4 PCI-E 3.0 x8

M.2
  • M.2 Interface: 2 PCI-E 3.0 x4

  • Form Factor: 2242/2260/2280/22110

  • Key: M-Key (RAID 0,1 support)


System BIOS

BIOS Type
  • AMI UEFI
