超微H12DSI-N6主板 AMD EPYC™ 7003/7002/EATX 返回

产品详情

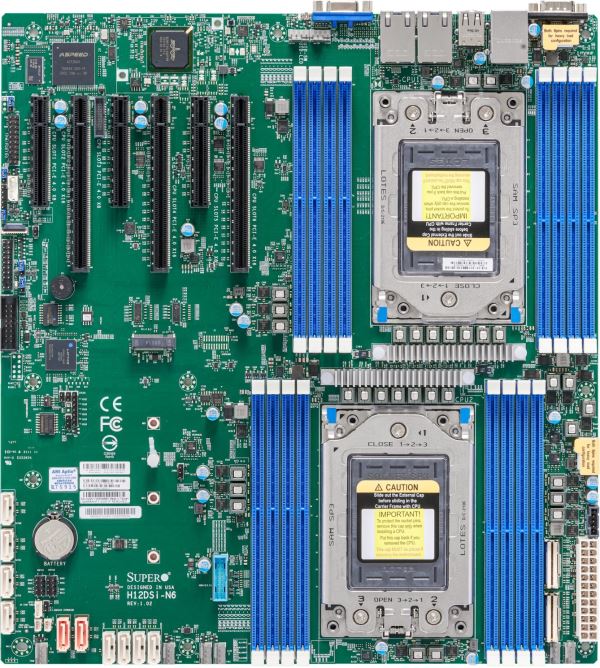

超微H12DSI-N6主板 AMD EPYC™ 7003/7002/EATX



MBD-H12DSi-N6
  • H12DSi-N6


Physical Stats

Form Factor
  • EATX

Dimensions
  • 12" x 13.05" (30.5cm x 33.1cm)


Processor/Chipset

CPU
  • Dual AMD EPYC™ 7003/7002 Series Processors

  • Socket SP3

Cores
  • Up to 64 Cores

Chipset
  • System on Chip


System Memory

Memory Capacity
  • 16 DIMM slots

  • Supports up to 4TB Registered ECC DDR4 3200MHz SDRAM

  • 8-channel memory bus

  • For Dual CPUs: Recommended that memory be populated equally in adjacent memory banks

Memory Type
  • DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs

DIMM Sizes
  • 8GB, 16GB, 32GB, 64GB, 128GB, 256GB

Memory Voltage
  • 1.2V

Error Detection
  • Corrects single-bit errors

  • Detects double-bit errors (using ECC memory)


On-Board Devices

SATA
  • SATA3 (6 Gbps)

IPMI
  • Support for Intelligent Platform Management Interface v. 2.0

  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

  • ASPEED AST2600 BMC

Network Controllers
  • Dual LAN via Broadcom BCM5720L Gigabit Ethernet Controller

VGA
  • ASPEED AST2600 BMC


Input / Output

SATA
  • 10 SATA3 (6 Gbps) ports

LAN
  • 2x 1GbE LAN ports

  • 1 RJ45 Dedicated IPMI LAN port

USB
  • 2 USB 2.0 ports (rear)

  • 4 USB 3.0 ports (2 rear, 2 headers)

VGA
  • 1 VGA port

Others
  • 1 COM port (rear)

  • 2 SATA DOM power connectors

  • 4 PCI-E 4.0 NVMe x4 internal ports

  • TPM 2.0 header


Expansion Slots

PCI-Express
  • 3 PCI-E 4.0 x16 slots

  • 3 PCI-E 4.0 x8 slots


M.2
  • Interface: 1 PCI-E 4.0 x4

  • Form Factor: 2280, 22110

  • Key: M-key
